Siam Master Precision Tool LTD (Thailand)
(Email: rollingdie@gmail.com )
Thread Rolling Dies -Grinding Type (New & Regrinding)รับทำลูกรีดเกลียวใหม่ และ รับซ่อมลูกรีดเกลียว
Tel: 02-1383617-8
Fax: 02-1383619
ติดต่อพนักงานฝ่ายขาย (คุณชลธิดา,คุณแอ๋ม,คุณหทัยชนก,คุณวิภา)
http://www.smpt.co.th/

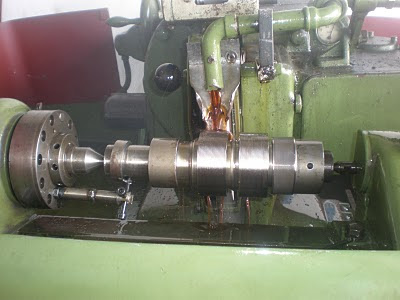

The thread grinding progress - by Swiss Reishauer thread grinding machine
Thru-feed & In-feed Thread rolling Dies New Product or Rework (Regrinding)
SMPT

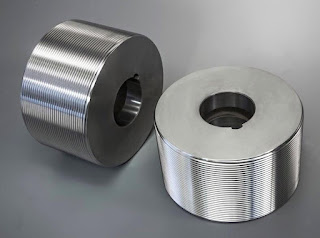

(Thread Rolling Cylindrical Dies) are broadly used among screw manufacturers.
The superior tool steel is a very important element of thread rolling dies. SKD11 (JIS),D2,SLD and 1.2379 (DIN),M2,SKH51,3342 are the named raw material which we have chosen for the past years. The blank of thread rollingd ies are heat treated by Japanese TECHNO vaccum & oil quenching furnace by heat treating dep. (UTT) It will render the higher rigidity and higher wear-resistance of thread rolling dies.After the heat treatment progressHRC, the thread rolling dies are ground by Swiss REISHAUER thread grinding machines. And another progress of tempering to reduce the grinding stress is necessary for thread rolling dies. The thread rolling dies are ready for sale after the quality exam. The good quality of thread rolling dies is able to offer higher precision, longer working life, and reduced the cost to customers.
We manufacture a vast range of Circular Thread Rolling Dies to suit various Attachment Heads and Machines. Such as FETTE, Alco and many more.
Our tooling is supplied to the automotive, aerospace, petro-chemical industries and many other areas in the specialized fastener sector.
Our thread profiles range from standard to non standard including Metric ISO, Whitworth (BSW, BSF, BSP, BSPT), Unified (UNC, UNF), BA, J Forms (MJ, UNJF, UNJC). Trapezoidal, Acme, Stubacme, Buttress. Out and out specials can be manufactured if required.
(ISO Standard, JIS Standards, ANSI/ASME, BS,DIN) Thread Rolling Dies New & Regrind ( ISO Metric , JIS, UNC , BSW, UNF,NPS,PF ,ACME ,BallScrew etc..)
เราคือผู้เชี่ยวชาญในเรื่องการผลิตลูกรีดเกลียว รับทำลูกรีดเกลียวใหม่หรือซ่อมลูกรีดเกลียว ทุกรุ่นทุกขนาด ด้วย เครื่องเจียรลูกรีดเกลียว REISHAUER จากประเทศสวิตเซอร์แลนด์ ด้วยเครื่องวัดเกลียวนอก สามเข็ม ระยะห่างของเกลียว ความลึกของเกลียว ระบบการจัดการฐานข้อมูลที่มีระบบจัดการข้อมูลด้วยระบบคอมพิวเตอร์ ไม่ว่าจะเป็นเรื่องการคำนวณขนาดของลูกรีดเกลียวในขนาดต่างๆ และ คำนวณโตนอกของลูกรีดเกลียวเพื่อล้างเกลียวเก่า และนำมาซ่อมเพื่อขึ้นเกลียวใหม่ โดยเครื่องจักรที่ทำลูกรีดเกลียวที่ทันสมัย
 |
| เพิ่มคำอธิบายภาพ |
Head Office: 3/189 ซอยศรีนครินทร์46/1 แขวงหนองบอน เขตประเวศ กทม 10250
Tel: 02-1383617-8 Fax: 02-1383619
ติดต่อพนักงานฝ่ายขาย (คุณชลธิดา,คุณแอ๋ม,คุณหทัยชนก,คุณวิภา)
http://www.smpt.co.th/
日本标准 JIS 規格
สยาม มาสเตอร์ พรีซีชั่น ทูล ได้รับความไว้วางใจจากลูกค้าทั้งในประเทศไทย และต่างประเทศ ลูกค้าต่างประเทศที่สั่งลูกรีดเกลียวใหม่และส่งงานลูกรีดเกลียวมาซ่อมเกลียว อาทิ มาเลเซีย เวียดนาม อินโดนิเซีย เราคือผู้เชี่ยวชาญในการผลิตลูกรีดเกลียว ในการทำลูกรีดเกลียวใหม่หรือซ่อมล้างเกลียวใหม่ด้วยเครื่องเจียรเกลียว
จำหน่ายลูกรีดลาย ลูกรีดลายตรง ลายไขว้
 |
| Rebar Thread Rolling Dies |
Rebar Thread Rolling
| Unit:mm |
| Rolling Machine Builder | Type | Thread size | Dies size | Distance between spindles | ||||||
| Model | JIS Type | Max.O.D | Max.Length | Max.Pitch | Max.O.D | Max.width | Hole dia. | Key-way | ||
| TSUGAMI | R1SA: | 3 | 10 (8) | 50 (1500) | 1.25 | ~140 | 40,50 | 54 | 12X59 | 120~160 |
| R6A: A6D T-ROL6 | 3 | 145 (25) | 160 (200) | 13 | ~150 | 60 | 54 | 12X59 | 125~180 | |
| R10A: T-ROL6 | 3 | 145 (25) | 160 (200) | 13.5 | ~150 | 60 | 54 | 12X59 | 125~180 | |
| R15A: 15D T-ROL15 | 5 | 100 (30) | 150 (4000) | 16 | ~180 | 150 | 54 | 12X59 | 135~250 | |
| R20A: 18D 20D T-ROL20 | 5 | 100 (30) | 150 (4000) | 18 | ~180 | 150 | 54 | 12X59 | 130~250 | |
| R2SA: 20D T-ROL20 | 5 | 100 (50) | 150 (4000) | 18 | ~200 | 150 (180) | 54 (70) | 12X59 (14X74.5) | 135~290 | |
| R30A: 25D T-ROL25 | 6 | 100 (100) | 300 (4000) | 12 | ~210 | 300 | 85 | 18X92 | 165~295 | |
| T-ROL60 | 100 (100) | 250 (~) | 15 | ~300 | 250 | 100 | 24X109 | 180~420 | ||
| T-ROL80: 80D | 150 (100) | 300 (~) | 15 | ~300 | 300 | 100 | 24X109 | 205~430 | ||
| NISSEI | FA3S | 1 | 6 | 30 | 1 | ~60 | 30 | 26 | - | 58~63 |
| FA3SN | 1 | 6 | 30 | 1 | ~60 | 30 | 26 | 5X28.5 | 58~63 | |
| FA5S | 2 | 14 | 50 | 2 | ~100 | 50 | 40 | 6X43.5 | 84~115 | |
| FA10 | 3 | 35 | 80 | 3.5 | 145 | 80 | 54 | 12X59 | 125~175 | |
| FA10L | 3 | 14 | ~ | 150 | 10 | 54 | 12X59 | 130~180 | ||
| FA6U | 3 | 45 | 75 | 2.5 | ~150 | 80 | 54 (70) | 12X59 (15X77.5) | 125~180 | |
| FA10U | 4 | 45 | 75 | 3.5 | 160 | 80 | 54 | 12X59 | 125~190 | |
| FA15 | 5 | 60 | 180 | 5 | 180 | 180 | 54 | 12X59 | 125~175 | |
| FA15U | 5 | 100 (30) | 150 (~) | 6 | 180 | 150 | 54 | 12X59 | 125~235 | |
| FA16 | 5 | 75 | 145 | 5 | 180 | 150 (180) | 54 (70) | 12X59 (15X77.5) | 135~240 | |
| FA20,FA20U | 5 | 100 (50) | 150 (~) | 8 | 200 | 150 (200) | 54 (70) | 12X59 (15X77.5) | 130~300 | |
| FA30 | 100 | 300 | 12 | 300 | 300 | 85 | 18X92 | 190~350 | ||
| FA50 | 100 (100) | 240 (~) | 15 | 300 | 250 | 85 | 18X92 | 170~400 | ||
| ?Comet500 | 4 | 10 | 30 | 1.5 | 160 | 40 | 54 | 12X59 | 130~180 | |
| KYOEI SEIKIO | KTR7 | 4 | 45 | 80 | 2.5 | 160 | 80 | 54 | 12X59 | 125~200 |
| KTR12 | 5 | 50 | 150 | 3 | 180 | 150 | 54 | 12X59 | 125~205 | |
| KTR20 | 5 | 100 | 180 | 8 | 220 | 180 | 70 (54) | 15X77.5 (12X59) | 160~280 | |
| KTR20S | 5 | 100 | 180 | 10 | 220 | 180 | 70 (54) | 15X77.5 (12X59) | 160~280 | |
| KTR35 | 100 | 300 | 12 | 250 | 300 | 85 (70) | 18X92 (15X77.5) | 175~350 | ||
| OSAKA KOSAKUSHO | TRII | 4 | 50 | 150 | 3 | 160 | 150 | 40 | 12X59 | 120~200 |
| TK | 5 | 75 | 180 | 5 | 170 | 180 (150) | 70 (54) | 15X77.5 (12X59) | 153~230 | |
| TRIII | 6 | 100 | 180 | 8 | 220 | 180 (150) | 70 (54) | 15X77.5 (12X59) | 160~270 | |
| TR35 | 6 | 100 | 300 | 12 | 250 | 300 (200) | 85 (70) | 18X92 (15X77.5) | 175~300 | |
| FUJITA KIKI | FS-A5 | 2 | 6 | 50 | 1 | 100 | 50 | 40 | 8X43.5 | ~115 |
| FS-AB | 3 | 25 | 65 | 2 | 150 | 65 | 54 | 10X59 | 132~160 | |
| SHONAN SEIKO | SR-1 | 1 | 6 | 30 | 1.5 | 70 | 30 | 26 | 5X28.5 | ~70 |
| TOKYO FUJI | TFS | 1 | 6 | 30 | 1.5 | 72 | 30 | 26 | 63~76 | |
| SUBARU | SA-3 | 1 | 6 | 30 | 1 | 60 | 30 | 26 | 5X28.5 | 58~63 |
| SA-5 | 2 | 10 | 30 | 1.5 | 100 | 30 | 40 | 6X43.5 | 84~115 | |
| RINSEN | ?KNL-8-500W | 3/8 | 32 | 1.6 | 160 | 32 | 72 | 12X78 | ||
| ?KNL-10-1500W | 5/8 | 155 | 2.3 | 160 | 155 | 65 | 12X71 | |||
| O-M | ?ROTAX-700W | 3/8 | 32 | 1.6 | 170 | 32 | 80 | 18X86 | ||
| NISSEI | A-22,A-23 (3-dies) | |||||||||
MEGA TR-30T,TR-18T,TR-50T,TR-80T,TR-10T,TR-5T
| Rolling Machine Builder | Type | Thread size | Dies size | Distance between spindles | ||||||
| Model | Max.O.D | Max.Length | Max.Pitch | Max.O.D | Max.width | Hole dia. | Key-way | |||
| UNIFY/ Union | UM-3 | Ø2 ~ Ø12 | 38mm | 0.4P ~ 1.75P | Ø100 | 30 | 50.5 | 8X4 | 95 ~ 120 | |
| UM-20 | Ø4 ~ Ø20 | 48mm | 0.7P ~ 2.5P | Ø120 | 50 | 40 | 8 X 4 | 110 ~ 145 | ||
| UM-35 | Ø6 ~ Ø35 | 148 mm | 1.0P ~ 3.0P | Ø150 | 150 | 54 | 10X5 | 145 ~ 180 | ||
| UM-75 (75A) | Hydraulic | Ø10 ~ Ø75 |
Plunge rolling
(Infeed):
148(75A:200)/
Thru feed rolling
:no limited
| 1.0P ~ 10.0P | Ø200 (75A=Ø250) | 35,70,100,150 (75A=70.100.150.200) | Ø70 (75A= Ø85) | 14X7 (75A=18X9) | 275 ~ 195 (75A: 300~220) | |
| UM-16 | Hydraulic | Ø2 ~ Ø16 |
Plunge rolling
(In feed):40
Thru feed rolling:
no limited
| 0.4P ~ 2.0P | Ø100 MAX | 10,15,30,40 | 50.5 | 8 X 4 | 90 ~ 120 | |
| UM-30 | Hydraulic | Ø5 ~ Ø30 |
Plunge rolling
(In feed):70
Thru feed rolling:
no limited
| 0.8P ~ 3.5P | Ø150MAX | 35, 70 | 54 | 10 X 5 | 142 ~ 185 | |
| UM-40 | Hydraulic | Ø6 ~ Ø40 |
Plunge rolling
(In feed):148
Thru feed rolling:
no limited
| 0.8P ~ 4.0P | Ø150MAX | 35, 70, 100, 150 | 54 | 10 X 5 | 125 ~ 200 | |
| UM-50 (50A) | Hydraulic | Ø6 ~ Ø50 | in feed and thru feed both available. | 1.0P ~ 6.35P | Ø178mm (50A=198) | 35, 70, 100, 150mm | Ø54mm (50A=Ø70), | 10 x 5 (50A=14 x 7) | 155 ~ 255mm | |
| JDY | JDY-3T | Ø2 ~ Ø12 | 28mm | 0.4~1.5P | 98mm | 30 | 50.5 | 8X4 | ||
| JYD-310 | Hydraulic | Ø2 ~ Ø16 | in feed and thru feed both available. | 0.4~1.75P | 98mm | 30 | 50.5 | 8X4 | ||
| JDY-30 | Ø6 ~ Ø30 | in feed and thru feed both available. | 1.0~3.0P | 148mm | 70 | 54 | 10X5 | |||
| JDY-50 | Ø6 ~ Ø80 | in feed and thru feed both available. | 1.0~6.0P | 180mm | 35~150mm | 54 | 10X5 | |||
| JDY-70 | Ø6 ~ Ø120 | in feed and thru feed both available. | 1.0~6.0P | 180mm | 35~150mm | 73 | ||||
| JDY-30A | 3 | Ø8 ~ Ø40 | in feed and thru feed both available. | 0.5~2.5P | 80mm | 40mm | 25.4 | 6.4X3.2 | ||
| JDY-60A | 3 | Ø15 ~ Ø60 | in feed and thru feed both available. | 0.5~4.0P | 120mm | 50mm | 40 | 8X4 | ||
| WMW BAD DUBEN | I-CHENG | |||||||||
| Rolling Machine Builder | Type | Thread size | Dies size | Distance between spindles | ||||||
| Model | Max.O.D | Max.Length | Max.Pitch | Max.O.D | Max.width | Hole dia. | Key-way | |||
| YC (yiehchen) | YC-3T | 0.8~12.5mm | 38mm | 0.4P ~ 1.5P | Ø100 | 40 | 50.5 | 8X4 | 90 ~ 130 | |
| YC-20 | Ø5 ~ Ø22 | 48mm | 0.75P ~ 2.5P | Ø120 | 50 | 40 | 8 X 4 | 100 ~ 140 | ||
| YC-30 | Ø5 ~ Ø40 | 148 mm | 0.75P ~ 3.0P | Ø150 | 150 | 54 | 10X5 | 140~ 187 | ||
YC-30A
| Hydraulic in feed and thru feed both available. | Ø8 ~ Ø30 |
in feed and thru feed both available.
| 0.5P ~ 2.5P | Ø80 | 20,30,40 | 25.4 | 6.4X3.2 | 50~130 | |
| YC-60A | Hydraulic in feed and thru feed both available | Ø15~ Ø60 | in feed and thru feed both available. | 0.75~3.0P | Ø140 | 50 | 40 | 8X4 | 75~210 | |
| YC-60AP | Hydraulic | Ø15 ~ Ø75 |
in feed and thru feed both available.
| 0.75P ~ 6.0P | Ø140 | 50 | 40 | 8X4 | ||
| YC-588 | ||||||||||
| YC-688 | ||||||||||
| YC-310 | Hydraulic in feed and thru feed both available | Ø2 ~ Ø16 | in feed and thru feed both available. | 0.4~2.0P | 100 | 30~40 | 50.5 | 8X4 | 90~130 | |
| YC (yiehchen) | YC-420 | Hydraulic in feed and thru feed both available | Ø6 ~ Ø35 | in feed and thru feed both available. | 0.75~4.0P | 150 | 80 | 54 | 10X5 | 125~170 |
| YC-530 | Hydraulic in feed and thru feed both available | Ø6 ~ Ø65 | in feed and thru feed both available. | 0.75~6.0P | 180 | 35~150 | 54 | 10X5 | 145~220 | |
| YC-530P | ||||||||||
| YC-530PS | ||||||||||
| YC-750P | ||||||||||
PR 25.1
PR 31,5.1
PR 10e PRS
PR 15e
PR15e PRS
2-PR 15e
2-PR 15e PRS
PR 30e
PR 30e PRS
PR 50e
PR 50e PRS
PR 10 CNC/AC
PR 30 CNC/AC
2-PR 15 CNC/AC
2-PR 30 CNC/AC
2-PR 40 CNC/AC
2-PR 60 CNC/AC
2-PR 80 CNC/AC
2-PR 100 CNC/AC
PRX 36 E-CNC
PRP 10 e
PRP 16 e
PRT 10
ROLLEX
ROLLEX 1
Thread Rolling machines
3-roller thread rolling machines
3-PRD 60e
3-PRD 40 CNC / AC
PRX 36 E-CNC
PRP 10 e
PRP 16 e
PRT 10
ROLLEX
ROLLEX 1
Thread Rolling machines
3-roller thread rolling machines
3-PRD 60e
3-PRD 40 CNC / AC
Machine Maker Name | Machine Model | Max OD (Die) | Max (Die)Width | ID Of Die |
BAD DUBEN PROFIROLL |
BAD DUBEN PROFIROLL |
Rolling Machine Builder
|
Type
|
Dies size
| ||||||
Model
|
Max.O.D
|
Max.width
|
Hole dia.
|
Key-way
| ||||
Kinefac
|
MC-5-F
|
2-1/2
|
4
|
1-1/2
| ||||
Kinefac
|
MC-5-F
|
2-1/2 or 3-1/2
|
4-3/8
|
2
| ||||
Kinefac
|
MC-25-F
|
4-1/2
|
6
|
2
| ||||
Kinefac
|
MC-50
|
7
|
9-1/2
|
3
| ||||
Landis
|
LAN-NU-ROL
|
4-1/2
|
2-3/8
|
1-1/2
| ||||
Landis
|
LAN-NU-ROL
|
6
|
8-5/8
|
3
| ||||
Landis
|
32TFRI
|
6
|
8-5/8
|
3
| ||||
Landis
|
HY-DUTY
|
10-1/2
|
12
|
4-1/2
| ||||
Reed
|
B112
| |||||||
Reed
|
B210
| |||||||
Reed
|
B220
| |||||||
Reed
|
B230
| |||||||
Reed
|
B250
| |||||||
Seny
|
D25E
| |||||||
Seny
|
D30
| |||||||
Seny
|
D40
| |||||||
Seny
|
D44H
| |||||||
Seny
|
D50H
| |||||||
Seny
|
D75B
| |||||||
Steinle
|
NO 1
| |||||||
Tesker
|
175
| |||||||
Tesker
|
200
| |||||||
Tesker
|
215
| |||||||
Tesker
|
320
| |||||||
Tesker
|
425
| |||||||
Tesker
|
635
| |||||||
Tesker
|
840
| |||||||
Izpe
|
RSC300
| |||||||
Izpe
|
RSC300H
| |||||||
Fritz Werner
|
PEE WEE P5
| |||||||
Fritz Werner
|
PEE WEE P12
| |||||||
Fritz Werner
|
PEE WEE P15
| |||||||
Fritz Werner
|
PEE WEE P20
| |||||||
Fritz Werner
|
PEE WEE P24
| |||||||
Fritz Werner
|
PEE WEE P25
| |||||||
Fritz Werner
|
PEE WEE P50
| |||||||
ORT Italia
|
3RP8
| |||||||
ORT Italia
|
3RP15
| |||||||
ORT Italia
|
18B
| |||||||
ORT Italia
|
3RP42
| |||||||
ORT Italia
|
RP50
| |||||||
ORT Italia
|
RP75
| |||||||
Escofier
|
H12
| |||||||
Escofier
|
H24
| |||||||
Escofier
|
H30
| |||||||
Escofier
|
H80
| |||||||
ねじ転造丸ダイスの外径の算出ダイスの外径は下記の計算式で算出されます。 D＝d2N+2ha ha ＝転造されるねじのデデンダムでダイスのねじのアデンダムとなる値です。 d2 ＝転造されるおねじの有効径です。 N ＝整数値でダイスが使い易く経済的となるように各機械の限定範囲内で選定します。＊Calculation of outer diameters of thread rolling cylindrical dies. D ＝d2N+2ha ha ：a value of the deddendum of the thread to be rolled, which is equivalent to the addendum of the die thread. d2 ：pitch diameter of the external screw to be rolled. N ：Number of Starts of die. Thread Rolling Dies ( Grinding) High Precision Grinding By High Precision Thread Grinder Thread Rolling Dies ( New Product) JIS DIN BS ANSI Standard Any kind of Thread Rolling Dies Can be made such As Metric (M), UNC,UNF,UNS,UNEF, BC,NPS,PF,PS,TW,ACME,Special Thread just give we sample than we will check by profile projector,any kind of thread rolling Die ( New Product or Rework)
Production Capability Range
(ขนาดลูกรีดเกลียวที่ทางเราสามารถผลิตได้)
Max. Diameter = 260 mm Max. Width = 200 mm
メートル並目ねじ(H/6) Metric Coarse screw threads (H/6)Shape and Type of Cylindrical Dies Thread Rolling Machine
NISSEI,TSUGAMI,FUJITA KIKI,TSUGAMI,R10A：T-ROL6
FA50,FA30,FA20,FA20U,FA16,FA15U,FA15,
,FA6U,FA10L,FA10,FA5S,FA3SN,FA3Sメートル細目ねじ(H/6) Metric Fine screw threads (H/6)
ユニファイ並目ねじ Unified Coarse screw threads ユニファイ細目ねじ Unified Fine screw threads ウィットねじ 前JIS 精度によります Whitworth screw threads (acc. to previous JIS) 管用ねじ Pipe threads BallSrew ลูกรีดเกลียว สำหรับรีดเกลียวคางหมู เกลียวACME thread ,เกลียวแกนพัดลม เกลียวแกนพัดลม ผลิตลูกรีดเกลียว ด้วยเครื่องเจียรเกลียว สำหรับรีดเกลียว ลูกรีดเกลียวซ้าย ลูกรีดเกลียวซ้าย รีดเกลียวซ้าย เกลียวพัดลม ลูกรีดเกลียวสำหรับรีดเกลียวมิล เกลียวนิ้ว เกลียวท่อ เกลียวหุน รีดเกลียวผ่าน (เกลียวปล่อย) จำหน่าย ลูกรีดลายตรง ลูกรีดลายไขว้ ลายกันลื่น ลูกรีดเกลียว รีดลาย ลายกันลื่น สกรูเกลียวปล่อย เกลียวหุน เกลียวมิล เกลียวท่อ เกลียวสตัด เกลียวแกนมอเตอร์ เกลียวหนอน The good quality of thead rolling dies needed the superior tool steel as element and raw material We choose the named tool steel SKD11( JIS) SLD, DC53, 1.2379(DIN2379) The raw material after threaded by heating with vacumm and oil heat treament hardening furnace will render thread rolling dies high rigidity and high wear-resistance. The thread rolling time from by swiss REISHAUER thread grinding machine and Examination by profile projector. Thread Rolling Dies RD, Thread rolling dies,Thread rolling head, Meterial SKH51,M2,SKH55,SKH59, Thread rolling dies Single thread or double thread,ISO Metric Screw Thread,Unified Coarse(UNC), Unified Fine(UNF),Unified Extra Fine(UNEF),Unified Special (UNS),BSW British Standard Whitworth (BSW), British Standard Pipe Parallel Thread ( BSPP) = G British Standard Pipe Taper Thread (BSPT) = R Thread Rolling Dies,Thread Rolling Die,Rolling Dies,
Three Rolling dies For Thread Roll HEAD
ลูกรีดเกลียว รับซ่อมลูกรีดเกลียว Thread Rolling Dies Regrinding Thread Rolling Dies Regrinding can be a very cost-effective way to maintain your thread rolling tooling,Depending on the thread form, Regrinding can cost as little as One-Third the cost of new dies. Thread Rolling Dies In-feed /Thru-feed Thread Rolling Dies thread rolling dies New & Regrinding Various thread rolling Dies ACME Thread Metric BSW UNC UNF UNEF UNS NPS PF M Worm type Screw ETC... Bangkok Thailand
ชิ้นงานที่รีดได้ สามารถตรวจเช็คด้วยเกจเช็คเกลียว Thread Rolling Dies Thailand Thread Rolling Dies Grinder Machine| Unit:mm |
| Rolling Machine Builder | Type | Thread size | Dies size | Distance between spindles | ||||||
| Model | JIS Type | Max.O.D | Max.Length | Max.Pitch | Max.O.D | Max.width | Hole dia. | Key-way | ||
| TSUGAMI | R1SA: | 3 | 10 (8) | 50 (1500) | 1.25 | ~140 | 40,50 | 54 | 12X59 | 120~160 |
| R6A: A6D T-ROL6 | 3 | 145 (25) | 160 (200) | 13 | ~150 | 60 | 54 | 12X59 | 125~180 | |
| R10A: T-ROL6 | 3 | 145 (25) | 160 (200) | 13.5 | ~150 | 60 | 54 | 12X59 | 125~180 | |
| R15A: 15D T-ROL15 | 5 | 100 (30) | 150 (4000) | 16 | ~180 | 150 | 54 | 12X59 | 135~250 | |
| R20A: 18D 20D T-ROL20 | 5 | 100 (30) | 150 (4000) | 18 | ~180 | 150 | 54 | 12X59 | 130~250 | |
| R2SA: 20D T-ROL20 | 5 | 100 (50) | 150 (4000) | 18 | ~200 | 150 (180) | 54 (70) | 12X59 (14X74.5) | 135~290 | |
| R30A: 25D T-ROL25 | 6 | 100 (100) | 300 (4000) | 12 | ~210 | 300 | 85 | 18X92 | 165~295 | |
| T-ROL60 | 100 (100) | 250 (~) | 15 | ~300 | 250 | 100 | 24X109 | 180~420 | ||
| T-ROL80: 80D | 150 (100) | 300 (~) | 15 | ~300 | 300 | 100 | 24X109 | 205~430 | ||
| NISSEI | FA3S | 1 | 6 | 30 | 1 | ~60 | 30 | 26 | - | 58~63 |
| FA3SN | 1 | 6 | 30 | 1 | ~60 | 30 | 26 | 5X28.5 | 58~63 | |
| FA5S | 2 | 14 | 50 | 2 | ~100 | 50 | 40 | 6X43.5 | 84~115 | |
| FA10 | 3 | 35 | 80 | 3.5 | 145 | 80 | 54 | 12X59 | 125~175 | |
| FA10L | 3 | 14 | ~ | 150 | 10 | 54 | 12X59 | 130~180 | ||
| FA6U | 3 | 45 | 75 | 2.5 | ~150 | 80 | 54 (70) | 12X59 (15X77.5) | 125~180 | |
| FA10U | 4 | 45 | 75 | 3.5 | 160 | 80 | 54 | 12X59 | 125~190 | |
| FA15 | 5 | 60 | 180 | 5 | 180 | 180 | 54 | 12X59 | 125~175 | |
| FA15U | 5 | 100 (30) | 150 (~) | 6 | 180 | 150 | 54 | 12X59 | 125~235 | |
| FA16 | 5 | 75 | 145 | 5 | 180 | 150 (180) | 54 (70) | 12X59 (15X77.5) | 135~240 | |
| FA20,FA20U | 5 | 100 (50) | 150 (~) | 8 | 200 | 150 (200) | 54 (70) | 12X59 (15X77.5) | 130~300 | |
| FA30 | 100 | 300 | 12 | 300 | 300 | 85 | 18X92 | 190~350 | ||
| FA50 | 100 (100) | 240 (~) | 15 | 300 | 250 | 85 | 18X92 | 170~400 | ||
| ?Comet500 | 4 | 10 | 30 | 1.5 | 160 | 40 | 54 | 12X59 | 130~180 | |
| KYOEI SEIKIO | KTR7 | 4 | 45 | 80 | 2.5 | 160 | 80 | 54 | 12X59 | 125~200 |
| KTR12 | 5 | 50 | 150 | 3 | 180 | 150 | 54 | 12X59 | 125~205 | |
| KTR20 | 5 | 100 | 180 | 8 | 220 | 180 | 70 (54) | 15X77.5 (12X59) | 160~280 | |
| KTR20S | 5 | 100 | 180 | 10 | 220 | 180 | 70 (54) | 15X77.5 (12X59) | 160~280 | |
| KTR35 | 100 | 300 | 12 | 250 | 300 | 85 (70) | 18X92 (15X77.5) | 175~350 | ||
| OSAKA KOSAKUSHO | TRII | 4 | 50 | 150 | 3 | 160 | 150 | 40 | 12X59 | 120~200 |
| TK | 5 | 75 | 180 | 5 | 170 | 180 (150) | 70 (54) | 15X77.5 (12X59) | 153~230 | |
| TRIII | 6 | 100 | 180 | 8 | 220 | 180 (150) | 70 (54) | 15X77.5 (12X59) | 160~270 | |
| TR35 | 6 | 100 | 300 | 12 | 250 | 300 (200) | 85 (70) | 18X92 (15X77.5) | 175~300 | |
| FUJITA KIKI | FS-A5 | 2 | 6 | 50 | 1 | 100 | 50 | 40 | 8X43.5 | ~115 |
| FS-AB | 3 | 25 | 65 | 2 | 150 | 65 | 54 | 10X59 | 132~160 | |
| SHONAN SEIKO | SR-1 | 1 | 6 | 30 | 1.5 | 70 | 30 | 26 | 5X28.5 | ~70 |
| TOKYO FUJI | TFS | 1 | 6 | 30 | 1.5 | 72 | 30 | 26 | 63~76 | |
| SUBARU | SA-3 | 1 | 6 | 30 | 1 | 60 | 30 | 26 | 5X28.5 | 58~63 |
| SA-5 | 2 | 10 | 30 | 1.5 | 100 | 30 | 40 | 6X43.5 | 84~115 | |
| RINSEN | ?KNL-8-500W | 3/8 | 32 | 1.6 | 160 | 32 | 72 | 12X78 | ||
| ?KNL-10-1500W | 5/8 | 155 | 2.3 | 160 | 155 | 65 | 12X71 | |||
| O-M | ?ROTAX-700W | 3/8 | 32 | 1.6 | 170 | 32 | 80 | 18X86 | ||
| NISSEI | A-22,A-23 (3-dies) | |||||||||
MEGA TR-30T,TR-18T,TR-50T,TR-80T,TR-10T,TR-5T
| Rolling Machine Builder | Type | Thread size | Dies size | Distance between spindles | ||||||
| Model | Max.O.D | Max.Length | Max.Pitch | Max.O.D | Max.width | Hole dia. | Key-way | |||
| UNIFY/ Union | UM-3 | Ø2 ~ Ø12 | 38mm | 0.4P ~ 1.75P | Ø100 | 30 | 50.5 | 8X4 | 95 ~ 120 | |
| UM-20 | Ø4 ~ Ø20 | 48mm | 0.7P ~ 2.5P | Ø120 | 50 | 40 | 8 X 4 | 110 ~ 145 | ||
| UM-35 | Ø6 ~ Ø35 | 148 mm | 1.0P ~ 3.0P | Ø150 | 150 | 54 | 10X5 | 145 ~ 180 | ||
| UM-75 (75A) | Hydraulic | Ø10 ~ Ø75 |
Plunge rolling
(Infeed):
148(75A:200)/
Thru feed rolling
:no limited
| 1.0P ~ 10.0P | Ø200 (75A=Ø250) | 35,70,100,150 (75A=70.100.150.200) | Ø70 (75A= Ø85) | 14X7 (75A=18X9) | 275 ~ 195 (75A: 300~220) | |
| UM-16 | Hydraulic | Ø2 ~ Ø16 |
Plunge rolling
(In feed):40
Thru feed rolling:
no limited
| 0.4P ~ 2.0P | Ø100 MAX | 10,15,30,40 | 50.5 | 8 X 4 | 90 ~ 120 | |
| UM-30 | Hydraulic | Ø5 ~ Ø30 |
Plunge rolling
(In feed):70
Thru feed rolling:
no limited
| 0.8P ~ 3.5P | Ø150MAX | 35, 70 | 54 | 10 X 5 | 142 ~ 185 | |
| UM-40 | Hydraulic | Ø6 ~ Ø40 |
Plunge rolling
(In feed):148
Thru feed rolling:
no limited
| 0.8P ~ 4.0P | Ø150MAX | 35, 70, 100, 150 | 54 | 10 X 5 | 125 ~ 200 | |
| UM-50 (50A) | Hydraulic | Ø6 ~ Ø50 | in feed and thru feed both available. | 1.0P ~ 6.35P | Ø178mm (50A=198) | 35, 70, 100, 150mm | Ø54mm (50A=Ø70), | 10 x 5 (50A=14 x 7) | 155 ~ 255mm | |
| JDY | JDY-3T | Ø2 ~ Ø12 | 28mm | 0.4~1.5P | 98mm | 30 | 50.5 | 8X4 | ||
| JYD-310 | Hydraulic | Ø2 ~ Ø16 | in feed and thru feed both available. | 0.4~1.75P | 98mm | 30 | 50.5 | 8X4 | ||
| JDY-30 | Ø6 ~ Ø30 | in feed and thru feed both available. | 1.0~3.0P | 148mm | 70 | 54 | 10X5 | |||
| JDY-50 | Ø6 ~ Ø80 | in feed and thru feed both available. | 1.0~6.0P | 180mm | 35~150mm | 54 | 10X5 | |||
| JDY-70 | Ø6 ~ Ø120 | in feed and thru feed both available. | 1.0~6.0P | 180mm | 35~150mm | 73 | ||||
| JDY-30A | 3 | Ø8 ~ Ø40 | in feed and thru feed both available. | 0.5~2.5P | 80mm | 40mm | 25.4 | 6.4X3.2 | ||
| JDY-60A | 3 | Ø15 ~ Ø60 | in feed and thru feed both available. | 0.5~4.0P | 120mm | 50mm | 40 | 8X4 | ||
| WMW BAD DUBEN | I-CHENG | |||||||||
| Rolling Machine Builder | Type | Thread size | Dies size | Distance between spindles | ||||||
| Model | Max.O.D | Max.Length | Max.Pitch | Max.O.D | Max.width | Hole dia. | Key-way | |||
| YC (yiehchen) | YC-3T | 0.8~12.5mm | 38mm | 0.4P ~ 1.5P | Ø100 | 40 | 50.5 | 8X4 | 90 ~ 130 | |
| YC-20 | Ø5 ~ Ø22 | 48mm | 0.75P ~ 2.5P | Ø120 | 50 | 40 | 8 X 4 | 100 ~ 140 | ||
| YC-30 | Ø5 ~ Ø40 | 148 mm | 0.75P ~ 3.0P | Ø150 | 150 | 54 | 10X5 | 140~ 187 | ||
YC-30A
| Hydraulic in feed and thru feed both available. | Ø8 ~ Ø30 |
in feed and thru feed both available.
| 0.5P ~ 2.5P | Ø80 | 20,30,40 | 25.4 | 6.4X3.2 | 50~130 | |
| YC-60A | Hydraulic in feed and thru feed both available | Ø15~ Ø60 | in feed and thru feed both available. | 0.75~3.0P | Ø140 | 50 | 40 | 8X4 | 75~210 | |
| YC-60AP | Hydraulic | Ø15 ~ Ø75 |
in feed and thru feed both available.
| 0.75P ~ 6.0P | Ø140 | 50 | 40 | 8X4 | ||
| YC-588 | ||||||||||
| YC-688 | ||||||||||
| YC-310 | Hydraulic in feed and thru feed both available | Ø2 ~ Ø16 | in feed and thru feed both available. | 0.4~2.0P | 100 | 30~40 | 50.5 | 8X4 | 90~130 | |
| YC (yiehchen) | YC-420 | Hydraulic in feed and thru feed both available | Ø6 ~ Ø35 | in feed and thru feed both available. | 0.75~4.0P | 150 | 80 | 54 | 10X5 | 125~170 |
| YC-530 | Hydraulic in feed and thru feed both available | Ø6 ~ Ø65 | in feed and thru feed both available. | 0.75~6.0P | 180 | 35~150 | 54 | 10X5 | 145~220 | |
| YC-530P | ||||||||||
| YC-530PS | ||||||||||
| YC-750P | ||||||||||
BAD DUBEN PROFIROLL |
PR 25.1
PR 31,5.1
PR 10e PRS
PR 15e
PR15e PRS
2-PR 15e
2-PR 15e PRS
PR 30e
PR 30e PRS
PR 50e
PR 50e PRS
PR 10 CNC/AC
PR 30 CNC/AC
2-PR 15 CNC/AC
2-PR 30 CNC/AC
2-PR 40 CNC/AC
2-PR 60 CNC/AC
2-PR 80 CNC/AC
2-PR 100 CNC/AC
PRX 36 E-CNC
PRP 10 e
PRP 16 e
PRT 10
ROLLEX
ROLLEX 1
Thread Rolling machines
3-roller thread rolling machines
3-PRD 60e
3-PRD 40 CNC / AC
PRX 36 E-CNC
PRP 10 e
PRP 16 e
PRT 10
ROLLEX
ROLLEX 1
Thread Rolling machines
3-roller thread rolling machines
3-PRD 60e
3-PRD 40 CNC / AC
Thread Rolling Dies Grinder Machine In-feed Thread Rolling die Grinding Machine ลูกรีดเกลียว ซ่อมลูกรีดเกลียว ประเทศไทย เครื่องเจียรเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว รีดเกลียวข้ออ้อย เกลียวนั่งร้าน ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว รีดเกลียวข้ออ้อย เกลียวก่อสร้าง ลูกรีดเกลียว รีดเกลียวงานก่อสร้าง รีดเกลียวเพลาขาว เหล็กหัวแดง เหล็กหัวน้ำเงิน รีดเกลียว น๊อต สกรู สลักเกลียว Thread rolling Dies Thread rolling die Die thread Special Die Thead rolling dies In-feed Thru-feed thead Rolling Die , Thread Rolling Dies, Thread Tools,thread Gages, Thread Gages, thead Tool, thread Rolling Dies Thailand Bangkok, Chonburi,Samutsakorn,Samutprakarn,thread rolling Die,thread Rolling, Thread Grinding, ประเทศไทยโซนลูกค้า ลูกค้า,กรุงเทพฯ สมุทรปราการ สมุทรสาคร สมุทรสงคราม ชลบุรี ระยอง อยุธยา ปทุมธานี นครปฐม นนทบุรี มีรถรับส่งงานภูมิภาค ลูกรีดเกลียว พระรามสอง เทพารักษ์ สำโรง ศรีนครินทร์ สุขุมวิท บางนาตราด ปู่เจ้าสมิงพราย แคราย เพชรเกษม พุทธมณฑล บางปะอิน นิคมอุตสาหกรรมบางพลี นิคมบางปู นิคมอมตะ นิคมเวลโกรว นิคมบางปะอิน นิคมอัญธานี ลูกรีดเกลียว ลูกรีดเกลียว เอกชัยบางบอน นิคมอุตสาหกรรมสมุทรสาคร เกจวัดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียวลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว， Thread Rolling Dies Thead Rolling Dies Thread Rolling Dies theadrollingdie threadrollingdies threadrollingdies thread rolling dies thread rolling die thread rollingdies thread rolling dies thread rollingdie threadrolling dies Thailand thread rolling dies ,
thread rolling dies thread rolling dies thread ลูกรีดเกลียว เกจวัดเกลียว เกจวัดเกลียว ลูกรีดเกลียวเครื่องรีดเกลียว รีดเกลียว เครื่องเจียรเกลียว เกลียว สกรู รีดสกรู เจาะรู ทำเกลียว รีดเกลียว รีดเกลียว รีดเกลียว รีดเกลียว รีดเกลียว ลูกรีดเกลียว ลูกรีดเกลียว เกลียว เกลียว เกลียวเกลียว เกลียว เกลียว เกลียวเกลียว ลูกรีดเกลียว บางพลี กระทุ่มแบน บางบ่อ บางปะกง บ้านค่าย แพรกษา บางเสาธง บางกรวย ไทรน้อย บางบัวทอง ยานนาวา ห้วยจระเข้ ดอนไก่ดี บางใหญ่ อ้อมน้อย อ้อมใหญ่ คลองหลวง ประชาอุทิศ ทุ่งครุ บางขุนเทียน บางซื่อ ดอนเมือง บางบอน ศรีราชา นิคมอุตสาหกรรมโรจนะ อุทัย วังน้อย ลูกรีดเกลียว ตัวรีดเกลียว เครื่องรีดเกลียว เครื่องรีดเกลียว เกลียวเกลียว เกลียว ลูกรีดเกลียว Thread Rolling dies Grinding,Thread rolling Grinder, 転造丸ダイスの形状と種類Thread rolling Dies ,Thread Gages, THREAD ROLLING DIE,THREAD ROLLING DIES,THREAD ROLLING DIES, ねじ転造丸ダイス転造丸ダイス形状名, D：外 径. T：幅. d：穴 径. F：キー幅. E：キー溝の深さ. 単位：mm. 転造盤 メーカー, 形式, 被転造ねじ寸法, ダイスの寸法, 軸間距離ねじ転造丸ダイスTHREAD ROLLING CYLIDRICAL DIES 転造素材径表RECOMMENDED BLANK DIAMETER Specifications of International Thread Standards M=Metric ISO ( Thread Angle 60°)=International Organization for Standardization ISO Metric Fine Thread ISO Metric Coarse Thread NC (Thread Angle 60°)= National Coarse UNC (Thread Angle 60°)=Unified National Coarse NF (Thread Angle 60° )=National Fine UNF (Thread Angle 60° ) = Unified National Fine UNEF (Thread Angle 60° ) =Unified National Extra Fine UN (Thread Angle 60° )=Unified National 8-,12- and 16 pitch series UNS (Thread Angle 60° )=Special Threads ofAmerican National Form NPT (Thread Angle 60° ) =National Taper Pipe 1:16 NPTF (Thread Angle 60° )=National Taper PipeDryseal 1:16 NPS (Thread Angle 60° )=National StandardStraight Pipe NPSM (Thread Angle 60° )=National Standard StraightPipe for free fitting mechanical NPSF (Thread Angle 60° )=National Standard InternalStraight Pipe Dryseal BSW (Thread Angle 55° )=British StandardWithworth Coarse BSF (Thread Angle 55° )=British Standard Fine BSP(Thread Angle 55° )=British Strandard Pipe BSPT(Thread Angle 55° )=British Standard Pipe Taper BA(Thread Angle 47° )=British Standard Association M4X0.7 M5X0.8 M6X1.0 M8X1.25 ตัวรีดสกรู ลูกรีดเกลียว ตัวทำสกรู ลูกรีดเกลียว ลูกรีดเกลียว เจียรเกลียว Thread Rolling Dies thead rolling die thread rolling dies thread rolling dies threadrollingdie threadrollingdies theadrollingdies thread rolling dies thailand thailand thread rolling dies threadrollingdies thread rolling dies thread rolling die thread roller thread rolling dies grinder thread rolling dies Grinding Regrinding thread Rolling dies Special thread rolling dies Nonstandard thread rollingdies threadrollingdies Thread rolling dies Manufacturers thread rolling dies Manufacturers thailand rolling dies Manufacturers thailand threa rolling dies manufacturers Thread Rolling dies FA 20T 3oT 10T 12T 11T ねじ転造ダイスの形状と種類 Specifications and types of Thread Rolling Cylindrical Dies 転造盤メーカー Thread rolling machine bullders 形式 Types 被転造ねじ寸法 Work Thread ダイス寸法 Die specifiations 軸間距離 Spindle distance 機種名 Model JIS 型式 JIS type No. 最大外径 Max. O.D. 最大長さ Max. length 最大ピッチ Max. pitch 外径 Outer dia 最大値 Max. width 穴径 Bore dia. キー溝×キー高さ key-way width × key-way depth 最小 minimum 最大 maximum ニッセー Nissei Co.,Ltd. FA-3S 1 6 30 1 ～ 60 30 26.05 － 58 62.5 FA-3SN 1 6 28 1 ～ 60 30 26.05 5 × 2.5 58 63 FA-5S 2 14 48 2 ～ 100 50 40 6 × 3.5 84 115 FA-6U 3 45 80 2 .5 ～ 150 80 54 12 × 5.2 125 180 FA-6UN 3 35 75 2 .5 ～ 150 80 54 12 × 5.2 125 190 FA-10 3 35 80 3 .5 ～ 140 80 54 12 × 5.2 125 175 FA-10N 3 35 75 3 ～ 140 80 54 12 × 5.2 125 175 FA-15 5 50 180 5 ～ 180 180 54 12 × 5.2 125 235 FA-15U 5 30 145 6 ～ 180 150 54 12 × 5.2 125 235 FA-16 5 60 145 5 ～ 160 150 54 12 × 5.2 135 240 FA-20 5 100 200 8 ～ 200 200 70 15 × 7.5 130 300 FA-20U 5 100 145 8 ～ 180 150 54 15 × 5.2 145 300 FA-20/CNC 5 100 195 0 .8 ～ 218 200 70 15 × 7.5 160 295 FA-30 100 300 1 2 ～ 300 300 85 18 × 7 190 350 FA-30U 100 295 1 2 ～ 240 300 85 18 × 7 190 370 FA-50 100 245 1 5 ～ 300 250 85 18 × 7 170 400 COMET500 4 10 500 1 .5 ～ 160 40 54 12 × 5.2 130 180 ツガミ Tsugami Corp. 5D 3 30 60 2 125 ～ 150 60 54 12 × 5.2 125 180 T-ROL6(A5D) 3 45 60 2 .5 125 ～ 149 60 54 12 × 5.2 125 180 R6A 3 45 60 2 .5 125 ～ 150 60 54 12 × 5.2 125 180 T-ROL15(15D) 5 100 150 5 135 ～ 180 150 54 12 × 5.2 135 250 R15A 5 75 150 5 135 ～ 180 150 54 12 × 5.2 135 250 R17NC-A 5 75 150 5 ～ 200 150 54 12 × 5.2 144 250 T-ROL20(20D) ※ 5 100 150 8 135 ～ 200 150 54 12 × 5.2 135 265 5 100 180 8 135 ～ 200 180 70 14 × 4.5 135 265 R20A ※ 5 75 150 8 135 ～ 180 150 54 12 × 5.2 135 250 5 100 200 8 135 ～ 180 200 70 14 × 4.5 135 250 T-ROL25(25D) 6 100 300 1 2 165 ～ 210 300 85 18 × 7 165 295 T-R0L50(50D) 100 250 1 5 185 ～ 300 250 100 24 × 9 180 420 T-R0L60(60D) ※ 100 250 1 5 ～ 300 250 85 18 × 7 180 420 100 250 1 5 ～ 300 250 100 24 × 9 180 420 T-ROL80(80D) 150 300 1 5 ～ 300 300 100 24 × 9 205 430 共栄精工 Kyoei Seiko Co., Ltd. KTR-7 4 45 100 2 .5 ～ 160 100 54 12 × 5.2 125 200 KTR-12 5 50 150 3 ～ 180 150 54 12 × 5.2 125 205 KTR-20※ 5 100 180 8 ～ 220 180 54 12 × 5.2 160 280 5 100 180 8 ～ 220 180 70 15 × 7.5 160 280 KTR-20S ※ 100 180 1 0 ～ 220 180 75 15 × 7.5 160 280 100 180 1 0 ～ 220 180 85 18 × 7 160 280 KTR-35※ 100 300 1 2 ～ 250 300 75 15 × 7.5 175 350 100 300 1 2 ～ 250 300 85 18 × 7 175 350 林泉工業 Rinsen Kogyo-sho KNL-8-500W 8 500 1 .5 ～ 160 32 54 12 × 5.5 10 500 1 .5 ～ 160 32 72 12 × 5.5 KNL-10-1500W 10 500 1 .5 ～ 160 155 65 12 × 5.5 森光機工 Morimitsu Kiko D8-500 10 500 1 .5 ～ 160 32 72 12 × 5.5 D10-700 10 700 1 .5 ～ 170 38 80 18 × 6 D10-1100 10 1,100 1 .5 ～ 170 38 80 18 × 6 D10-1500 10 1,500 1 .5 ～ 160 160 65 12 × 5.5 D10-3000 10 3,000 1 .5 ～ 170 38 80 18 × 6 ROTAX-KM-01 1 6 30 1 ～ 62 30 26.05 5 × 3 57 65 ROTAX-KM-1 2 20 60 2 ～ 100 60 40 6 × 3.5 84 120 ROTAX-KM-6 45 80 2 .5 ～ 150 40 ～ 80 54 12 × 5.2 128 180 ROTAX-KM-2 5 50 100 3 .5 ～ 180 100 54 12 × 5.2 125 200 ROTAX-KM-3 M4X0.7 M5X0.8 M6X1.0 M7X1.0 M8X1.0 M8X1.25 M10X1.0 M11X1.0 M12x1.0 M12x1.25 M12X1.5 M12X1.75 M10X1.25 M10X1.5 M14X1.0 M14X2.0 M14X1.5 M16X1.0 M16X1.5 M16X2.0 M18X1.0 M18X1.5 M18X1.25 M18X2.0 M20X1.0 M20X1.5M20X2.0 M20X2.5M22X2.0M22X1.0M22X1.75 M22X2.5 M24X1.0 M24X1.5M24X2.0M24X3.0M25X1.0M25X1.5M25X2.0M26X1.5M27X1.0M27X3.0 1/2"x13 1/2"UNC13 3/8"x16 3/8"UNC16 3/4"x10 3/4"UNC10 ANSI/ASME JIS DIN BS EN ISO Standard thread rolling dies Tel: 02-1383617-8 (คุณชลธิดา,คุณแอ๋ม,คุณหทัยชนก,คุณวิภา) Thread Rolling Dies RE-Work , Regrinding , Thread Plug Gages,Thread Ring Gauge. Special Tap, รับทำลูกรีดเกลียวใหม่ และซ่อมลูดรีดเกลียว (ด้วยเครื่องเจียรเกลียว) In-feed =ชิ้นงานรีดอยู่กับที่หรือเกลียวรีดอยู่กับที่ เกลียวของชิ้นงานไม่เกินความหนา(หน้ากว้าง)ลูกรีด/ Thru-feed= ชิ้นงานรีดวิ่งผ่าน หรือเกลียววิ่ง ความยาวของชิ้นงาน(เกลียว)รีดวิ่งผ่านได้ทั้งชิ้น ลูกรีดเกลียวใช้งานกับเครื่องรีดเกลียวรุ่นต่างๆ เราสามารถผลิตลูกรีดเกลียวได้ทุกรุ่น Thread Rolling Machine Model: JIS & Taiwan I-CHENG UNIFY FDY JAPAN JIS Thread rolling Machine Model: TSUGAMI Model: R1SA: R6A: NISSEI Model: FA3S ,FA3SN,FA5S,FA10,FA10L,FA15 KYOEI SEIKIO OSAKA KOSAKUSHO FUJITA KIKI SHONAN SEIKO TOKYO FUJI SUBARU RINSEN O-M NISSEI Nissei JIS Model: FA-3S ,FA-3SN,FA-5S,FA-10A,FA-10L,FA-15,FA-15U,FA-16 ,FA-20,FA-20U,FA-30,FA-30U,FA-50 TSUGAMI Model: 5D,T-ROL6(A5D),R6A,R15A KYOEI SEIKIO MODEL: KTR-7,KTR-12,KTR-20,KTR20S,KTR-35 RINSEN Model: KNL-8-500W MORIMITSU KIKO Model:D10-700 Thread rolling dies New & Rework Thailand By Thread Grinder machine Contact us : Tel: 021383617-8 I-CHENG Model: IC-3T Thread Type: In-feed (เครื่องรีดเกลียวอยู่กับที่) Thread Rolling dies Max. diameter= 100 mmThread Rolling die Width = 30 mm
Hole diameter = 50.5 mm
Thread Rolling Machine
UM、YC、IC、FDY、PMC、TR、JDY
TR-30T、TR-560H、IC-530、IC-515、JDY-30、JDY-50、UM-20、UM-30、UM-40、UM-50、UM-75、YC-310、YC-20、YC-30、YC-530、PM-32、PM-50、PM-40、PM-60、PM-120
FDY-90A、UM-3D、UM-3DX、PM-3D-30、PM-3D-60、PM-3D-80、YC-30A、YC-60A、JDY-60A、JDY-30A、FDY-60A、FDY-80A、PR60A、PR30A
IC-310、JDY-30、UM-50、YC-30、YC-530、PM-32、PM-50、YC-30A、YC-30、FDY-20、UM-3DX。
IC-530、IC-530S、TR-560E、JDY-50、UM-50、YC-530、FDY-50、TR-30T、TR-560H、IC-530、IC-515、JDY-30、JDY-50、UM-20、UM-30、UM-40、UM-50、UM-75、YC-310、YC-20、YC-30、YC-530、PM-32、PM-50、PM-40、PM-60、PM-120
Keyway width= 8 mm
keyway depth= 4mm
Workpice
Thread Diameter = 0.8~12 mm Thread Pitch = 0.4~1.5mm Max. length = 28 mm I-CHENG Model: IC-310 Thread type: In-feed & Thru-feed ( Double-Purpose) (เครื่องรีดเกลียว ที่รีดได้ทั้ง เกลียวอยู่กับที่และเกลียววิ่ง) Thread Rolling Dies Max. Dia = 100 mm Thread Rolling dies Width= 30~40 mm Hole diameter =50.5mm keyway width= 8 mm keyway depth= 4mm Workpiecs Dia. Rang of thread Rolled = 2~16mm Rang of Pitch =0.4~1.75 mm Max. length of thread rolled = Through (Thru-feed ) In-feed --------------------------------------------------- UNIFY Model: UM-3 Thread Type: In-feed (รีดเกลียวอยู่กับที่) thread Rolling Dies Max. Diameter = 100 mm Thread Rolling dies Width = 30 mm Hole diameter = 50.5 mm Keyway width=8 mm Keyway depth= 4 mm Workpiece Dia. Range of thread rolled = 2~12mm Rang of Pitch= 0.4~1.75mm Max. length of thread rolled= 28mm UNIFY Model: UM-16 Thread Type: In-feed & Thru-feed ( Double Purpose) (รีดเกลียวอยู่กับที่และเกลียววิ่ง) Thru-feed
Thread Rolling Die Max. Diameter = 1oomm Thead Rolling Dies Width = 10~ 40 mm Hole Diameter = 50.5 mm Keyway Width= 8 mm Keyway depth= 4 mm WorkPiecs Dia. Rang of Thread Rolled = 2~16mm Range of Pitch = 0.4 ~2.0 mm Max. Length of Thread Rolled= In-feed & Thru-feed (Double Purpose) --------------------------------------------- FDY-3T ( Thru-feed & In-feed) = Double-Purpose (รีดเกลียวอยู่กับที่และรีดเกลียววิ่ง)
Thread Rolling Dies Max. diameter = 100 mm
Thread Rolling Dies Machine
転造盤
メーカー
メーカー
転造丸ダイスの形状と種類
津上
ニッセー
共栄精工
大阪工作所
thread Rolling dies Width = 30 mm
Hole diameter = 50.5 mm
keyway width = 8 mm
keyway depth= 4 mm
Workpiece
Diameter Range of thread rolled = 2~12 mm Range of Pitch =0.4~1.75 mm Max. length = (Thru-feed & In-feed(28mm) ------------------------------------------------- Thread Rolling Machine I-CHENG Model: IC-20 ( YC-20) Thread Type: In-feed (รีดเกลียวอยู่กับที่) Thread Rolling Dies Max. Diameter = 120mm Thread Rolling Dies Width = 50 mm Hole diameter = 40 mm keyway width = 8 mm keyway depth= 4 mm WorkPiece Dia. Range of Thread Rolled = 5~22 mm Range of Pitch = 0.75~ 2.5 mm Max Length = 48 mm UNIFY Model: UM-20 Thread Type: In-feed Thread Rolling Dies Max. Diameter = 120 mm Thread Rolling Dies Width = 50 mm Hole Diameter = 40 mm Keyway Width = 8 mm Keyway Depth = 4 mm WorkPiece Dia. Rang of Thread Rolled = 4~ 20 mm Range of Pitch = 0.7~ 2.5 mm Max. Length = 48 mm FDY -20 Thread Type: In-feed & Thru-feed ( Double Purpose) Thread Rolling Dies Max. Diameter = 120 mm Thread Rolling Dies Width =50 mm Hole Diameter = 40mm Keyway width = 8 mm Keyway depth = 4 mm WorkPiece Dia Range of thread Rolled = 4~20 mm Range of Pitch = 0.7~2.5mm Max. Length = In-feed (48mm) / Thru-feed -------------------------------------------------- FDY-30 (In-feed & Thru-feed) Thread Rolling Dies Max. Dia. = 150 mm Thread Rolling Dies Width = 25~ 150 mm (ความหนาสั่งได้) Hole Diameter = 54 mm keyway width = 10 mm keyway depth = 5 mm WorkPiece Dia. Range of Thread Rolled = 6 ~ 35 mm Range of Pitch = 1.0 ~ 3.0 mm Max Length = In-feed ( 148mm) / Thru-feed (ไม่จำกัด) ------------------------------------------------- I-CHENG Model: IC-30D Thread Type: In-feed Thread Rolling Dies Max. Dia. = 150 mm Thread Rolling Dies Max. width=150mm Hole Diameter = 54 mm Keyway Width = 10 mm Keyway depth= 5 mm Workpiece Dia. Range of Thread Rolled= 6~ 40 mm Range of Pitch= 0.75~ 3.0 mm Max. Length= 150 mm ---------------------------------------------------- UNIFY Model: UM-35 Thread Type: In-feed Thread Rolling Dies Max. Dia = 150 mm Thread Rolling Dies Max. Width= 35 mm , 70 mm , 100mm, 150 mm Hole dia. = 54 mm keyway width= 10 mm Keyway depth= 5 mm Workpiece Dia. Range of Thread Rolled = 6~ 35 mm Range of Pitch = 1.0 ~3.0 mm Max. Length= 148 mm ---------------------------------------------------- UNIFY Model: UM-40 (UNION-40) Thread Type: In-feed & Thru Feed ------------------------------------------------------------------------------------------------ FDY-50 ( In-feed & Thru-feed) ------------------------------------------- UNIFY Model: UM-50 (50A) ( UNION-50) Thread Type : In-feed & Thru-feed --------------------------------------------- I-CHENG Model: IC-515 / IC-530 สั่งซื้อลูกรีดเกลียวได้ที่ Siam Master Precision Tool Ltd. ลูกรีดลายตรง ลูกรีดลายไขว้ ลูกรีดเกลียวนิ้ว เกลียวมิล เกลียวท่อ Tel: 02- 1383617-8 Fax: 02- 138-3619

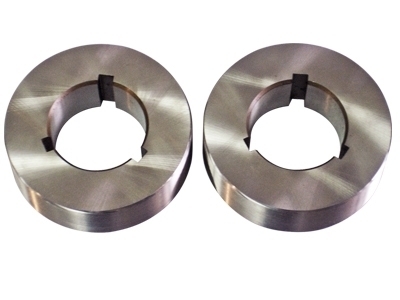

Thread Rolling Cylindrical Dies
These dies are broadly used among screw manufacturers. Threads are imprinted with two moving cylindrical dies.
In-feed
TSUGAMI
NISSEI
KYOEI SEIKIO
OSAKA KOSAKUSHO
FUJITA KIKI
SHONAN SEIKO
TOKYO
SUBARU
KTR35
Thread Rolling Machine
Model: FDY-3T,FDY-20,FDY-50,FDY-80A,
TSUGAMI
| |
Thread Rolling Die
MEGA TR-30T,TR-18T,TR-50T,TR-80T,TR-10T,TR-5T
จำหน่ายลูกรีดเกลียว
R1SA：
|
R6A：
A6D T-ROL6 |
R10A：
T-ROL6 |
R15A：
15D T-ROL15 |
R20A：
18D 20D T-ROL20 |
R2SA：
20D T-ROL20 |
R30A：
25D T-ROL25 |
T-ROL60
|
T-ROL80：
80D |
FA3S
|
FA3SN
|
FA5S
|
FA10
|
FA10L
|
FA6U
|
FA10U
|
FA15
|
FA15U
|
FA16
|
FA20,FA20U
|
FA30
|
FA50
|
※Comet500
|
NISSEI
KYOEI SEIKIO
FUJITA KIKI
SHONAN SEIKO
SUBARU
KTR7
|
KTR12
|
KTR20
|
KTR20S
|
tuYUeKQB0RA/T3vFCM4oO1I/AAAAAAAAAOU/S9kE8f50SkA/s400/%25E0%25B8%25A5%25E0%25B8%25B9%25E0%25B8%2581%25E0%25B8%2584%25E0%25B9%2589%25E0%25B8%25B2%25E0%25B8%2597%25E0%25B8%25B5%25E0%25B9%2588%25E0%25B8%25A1%25E0%25B8%25B5%25E0%25B8%259B%25E0%25B8%25B1%25E0%25B8%258D%25E0%25B8%25AB%25E0%25B8%25B2%25E0%25B8%2581%25E0%25B8%25B1%25E0%25B8%259A%25E0%25B9%2581%25E0%25B8%2595%25E0%25B8%2581%25E0%25B8%2582%25E0%25B8%25AD%25E0%25B8%259A%25E0%25B8%25A5%25E0%25B8%25B9%25E0%25B8%2581%25E0%25B8%25A3%25E0%25B8%25B5%25E0%25B8%2594%25E0%25B9%2580%25E0%25B8%2581%25E0%25B8%25A5%25E0%25B8%25B5%25E0%25B8%25A2%25E0%25B8%25A7%25E0%25B9%2580%25E0%25B8%2581%25E0%25B8%25A5%25E0%25B8%25B5%25E0%25B8%25A2%25E0%25B8%25A7%25E0%25B9%2581%25E0%25B8%25A3%25E0%25B8%2581.jpg" border="0" alt=""id="BLOGGER_PHOTO_ID_5727387992740870994" />
SA-5
M3X0.5
M3.5X0.6
M4X0.7
M4.5X0.75
M5X0.8
M6X1.0
M8X1.25
M9X1.25
M10X1.5
M11X1.5
M12X1.75
M14X2.0
M16X2.0
M18X2.5
M20X2.5
M22X2.5
M24X3.0
M27X3.0
M30X3.5
M33X3.5
M36X4.0
M39X4.0
M42X4.5
M45X4.5
M48X5.0
M52X5.0
M56X5.5
M60X5.5
M64X6.0
M68X6.0
M2.5X0.35
M3X0.35
M3.5X0.35
M4X0.5
M4.5X0.5
M5X0.5
M5.5X0.5
M6X0.5
M6X0.75
M7X0.75
M8X0.75
M9X0.75
M10X0.75
M11X0.75
M12X0.75
M8X1.0
M9X1.0
M10X1.0
M11X1.0
M12X1.0
M14X1.0
M16X1.0
M18X1.0
M20X1.0
M22X1.0
M24X1.0
M27X1.0
M30X1.0
M10X1.25
M12X1.25
M12X1.5
M14X1.5
M16X1.5
M18X1.5
M20X1.5
M22X1.5
M24X1.5
M27X1.5
M28X1.5
M30X1.5
M33X1.5
M36X1.5
M39X1.5
M42X1.5
M45X1.5
M48X1.5
M50X1.5
M52X1.5
M55X1.5
M56X1.5
M58X1.5
M60X1.5
M18X2.0
M20X2.0
M22X2.0
M24X2.0
M27X2.0
M30X2.0
M33X2.0
M36X2.0
M39X2.0
M42X2.0
M45X2.0
M48X2.0
M52X2.0
M56X2.0
M60X2.0
M64X2.0
M68X2.0
M72X2.0
M76X2.0
M80X2.0
M85X2.0
M90X2.0
M95X2.0
M100X2.0
M30X3.0
M33X3.0
M36X3.0
M39X3.0
M42X3.0
M45X3.0
M48X3.0
M52X3.0
M56X3.0
M60X3.0
M64X3.0
M68X3.0
M72X3.0
M76X3.0
M80X3.0
M85X3.0
M90X3.0
M95X3.0
M100X3.0
M42X4.0
M45X4.0
M48X4.0
M52X4.0
M56X4.0
M60X4.0
M64X4.0
M68X4.0
M72X4.0
M76X4.0
M80X4.0
M85X4.0
M90X4.0
M95X4.0
M100X4.0
M72X6.0
M76X6.0
M80X6.0
M85X6.0
M90X6.0
M95X6.0
M100X6.0
M130X6.0
M150X6.0
M180X6.0
NO:04-40UNC
NO:06-32UNC
NO:08-32UNC
NO:10-24UNC
NO:12-24UNC
1/4”-20UNC
5/16” -18UNC
3/8”-16UNC
7/16” -14UNC
1/2”-13UNC
9/16” -12UNC
5/8”-11UNC
3/4”-10UNC
7/8”- 9UNC
1” - 8UNC
11/8” - 7UNC
11/4” - 7UNC
13/8” - 6UNC
11/2” - 6UNC
13/4” - 5UNC
2” - 41/2UNC
21/4 - 4.5UNC
21/2” - 4UNC
23/4” - 4UNC
3”- 4UNC
31/4 - 4UNC
31/2 - 4UNC
4” - 4UNC
NO:04-48UNF
NO:06-40UNF
NO:08-36UNF
NO:10-32UNF
NO:12-28UNF
1/4”-28UNF
5/16” -24UNF
3/8”-24UNF
7/16” -20UNF
1/2”-20UNF
9/16” -18UNF
5/8”-18UNF
3/4”-16UNF
7/8”-14UNF
1” -12UNF
11/8” -12UNF
11/4” -12UNF
13/8” -12UNF
11/2” -12UNF
NO:12-32UNEF
1/4”-32UNEF
5/16-32UNEF
3/8”-32UNEF
7/16-28UNEF
1/2” -28UNEF
9/16-24UNEF
5/8” -24UNEF
3/4” -20UNEF
13/16 -20UNEF
7/8” -20UNEF
15/16 -20UNEF
1”-20UNEF
1 1/16 - 18NEF
1 1/8 -18UNEF
1 3/16 - 18NEF
1 1/4-18UNEF
1 5/16 - 18NEF
1 3/8-18UNEF
1 7/16 - 18NEF
1 1/2-18UNEF
1 9/16 - 18NEF
1 5/8-18UNEF
1 11/16-18UNEF
M3.5X0.6
M4X0.7
M4.5X0.75
M5X0.8
M6X1.0
M8X1.25
M9X1.25
M10X1.5
M11X1.5
M12X1.75
M14X2.0
M16X2.0
M18X2.5
M20X2.5
M22X2.5
M24X3.0
M27X3.0
M30X3.5
M33X3.5
M36X4.0
M39X4.0
M42X4.5
M45X4.5
M48X5.0
M52X5.0
M56X5.5
M60X5.5
M64X6.0
M68X6.0
M2.5X0.35
M3X0.35
M3.5X0.35
M4X0.5
M4.5X0.5
M5X0.5
M5.5X0.5
M6X0.5
M6X0.75
M7X0.75
M8X0.75
M9X0.75
M10X0.75
M11X0.75
M12X0.75
M8X1.0
M9X1.0
M10X1.0
M11X1.0
M12X1.0
M14X1.0
M16X1.0
M18X1.0
M20X1.0
M22X1.0
M24X1.0
M27X1.0
M30X1.0
M10X1.25
M12X1.25
M12X1.5
M14X1.5
M16X1.5
M18X1.5
M20X1.5
M22X1.5
M24X1.5
M27X1.5
M28X1.5
M30X1.5
M33X1.5
M36X1.5
M39X1.5
M42X1.5
M45X1.5
M48X1.5
M50X1.5
M52X1.5
M55X1.5
M56X1.5
M58X1.5
M60X1.5
M18X2.0
M20X2.0
M22X2.0
M24X2.0
M27X2.0
M30X2.0
M33X2.0
M36X2.0
M39X2.0
M42X2.0
M45X2.0
M48X2.0
M52X2.0
M56X2.0
M60X2.0
M64X2.0
M68X2.0
M72X2.0
M76X2.0
M80X2.0
M85X2.0
M90X2.0
M95X2.0
M100X2.0
M30X3.0
M33X3.0
M36X3.0
M39X3.0
M42X3.0
M45X3.0
M48X3.0
M52X3.0
M56X3.0
M60X3.0
M64X3.0
M68X3.0
M72X3.0
M76X3.0
M80X3.0
M85X3.0
M90X3.0
M95X3.0
M100X3.0
M42X4.0
M45X4.0
M48X4.0
M52X4.0
M56X4.0
M60X4.0
M64X4.0
M68X4.0
M72X4.0
M76X4.0
M80X4.0
M85X4.0
M90X4.0
M95X4.0
M100X4.0
M72X6.0
M76X6.0
M80X6.0
M85X6.0
M90X6.0
M95X6.0
M100X6.0
M130X6.0
M150X6.0
M180X6.0
NO:04-40UNC
NO:06-32UNC
NO:08-32UNC
NO:10-24UNC
NO:12-24UNC
1/4”-20UNC
5/16” -18UNC
3/8”-16UNC
7/16” -14UNC
1/2”-13UNC
9/16” -12UNC
5/8”-11UNC
3/4”-10UNC
7/8”- 9UNC
1” - 8UNC
11/8” - 7UNC
11/4” - 7UNC
13/8” - 6UNC
11/2” - 6UNC
13/4” - 5UNC
2” - 41/2UNC
21/4 - 4.5UNC
21/2” - 4UNC
23/4” - 4UNC
3”- 4UNC
31/4 - 4UNC
31/2 - 4UNC
4” - 4UNC
NO:04-48UNF
NO:06-40UNF
NO:08-36UNF
NO:10-32UNF
NO:12-28UNF
1/4”-28UNF
5/16” -24UNF
3/8”-24UNF
7/16” -20UNF
1/2”-20UNF
9/16” -18UNF
5/8”-18UNF
3/4”-16UNF
7/8”-14UNF
1” -12UNF
11/8” -12UNF
11/4” -12UNF
13/8” -12UNF
11/2” -12UNF
NO:12-32UNEF
1/4”-32UNEF
5/16-32UNEF
3/8”-32UNEF
7/16-28UNEF
1/2” -28UNEF
9/16-24UNEF
5/8” -24UNEF
3/4” -20UNEF
13/16 -20UNEF
7/8” -20UNEF
15/16 -20UNEF
1”-20UNEF
1 1/16 - 18NEF
1 1/8 -18UNEF
1 3/16 - 18NEF
1 1/4-18UNEF
1 5/16 - 18NEF
1 3/8-18UNEF
1 7/16 - 18NEF
1 1/2-18UNEF
1 9/16 - 18NEF
1 5/8-18UNEF
1 11/16-18UNEF
Thread Rolling Dies By Grinding Thailand http://www.smpt.co.th/ Tel: 662 -1383617-8 Fax: 662-1383619 SMPT Thread Tool /
Thread rolling cylindrical die attachments are often used on
multi-spindle automatic lathe machines.
Cylindrical Dies for Worm Gears
Cylindrical Dies for Serrations
In-Feed and Thru-Feed Cylindrical Dies
Rolling Machine Builder
|
Type
|
Dies size
|
||||||
Model
|
Max.O.D
|
Max.width
|
Hole dia.
|
Key-way
|
||||
Kinefac
|
MC-5-F
|
2-1/2
|
4
|
1-1/2
|
||||
Kinefac
|
MC-5-F
|
2-1/2 or 3-1/2
|
4-3/8
|
2
|
||||
Kinefac
|
MC-25-F
|
4-1/2
|
6
|
2
|
||||
Kinefac
|
MC-50
|
7
|
9-1/2
|
3
|
||||
Landis
|
LAN-NU-ROL
|
4-1/2
|
2-3/8
|
1-1/2
|
||||
Landis
|
LAN-NU-ROL
|
6
|
8-5/8
|
3
|
||||
Landis
|
32TFRI
|
6
|
8-5/8
|
3
|
||||
Landis
|
HY-DUTY
|
10-1/2
|
12
|
4-1/2
|
||||
Reed
|
B112
|
|||||||
Reed
|
B210
|
|||||||
Reed
|
B220
|
|||||||
Reed
|
B230
|
|||||||
Reed
|
B250
|
|||||||
Seny
|
D25E
|
|||||||
Seny
|
D30
|
|||||||
Seny
|
D40
|
|||||||
Seny
|
D44H
|
|||||||
Seny
|
D50H
|
|||||||
Seny
|
D75B
|
|||||||
Steinle
|
NO 1
|
|||||||
Tesker
|
175
|
|||||||
Tesker
|
200
|
|||||||
Tesker
|
215
|
|||||||
Tesker
|
320
|
|||||||
Tesker
|
425
|
|||||||
Tesker
|
635
|
|||||||
Tesker
|
840
|
|||||||
Izpe
|
RSC300
|
|||||||
Izpe
|
RSC300H
|
|||||||
Fritz Werner
|
PEE WEE P5
|
|||||||
Fritz Werner
|
PEE WEE P12
|
|||||||
Fritz Werner
|
PEE WEE P15
|
|||||||
Fritz Werner
|
PEE WEE P20
|
|||||||
Fritz Werner
|
PEE WEE P24
|
|||||||
Fritz Werner
|
PEE WEE P25
|
|||||||
Fritz Werner
|
PEE WEE P50
|
|||||||
ORT Italia
|
3RP8
|
|||||||
ORT Italia
|
3RP15
|
|||||||
ORT Italia
|
18B
|
|||||||
ORT Italia
|
3RP42
|
|||||||
ORT Italia
|
RP50
|
|||||||
ORT Italia
|
RP75
|
|||||||
Escofier
|
H12
|
|||||||
Escofier
|
H24
|
|||||||
Escofier
|
H30
|
|||||||
Escofier
|
H80
|
|||||||
benang rolling mati Thailand (AEC)
AEC东盟经济共同体
Asean economic community
東協經濟共同體」（AEC）
東協經濟共同體」（AEC）
泰國 滾牙輪 滾絲輪 滾螺絲
泰国滚牙轮滚丝轮滚螺丝
Cộng đồng Kinh tế ASEAN。
Khuôn cán ren được sản xuất theo tiêu chuẩn Nhật Bản.
Khuôn cán ren được nhập mới 100% .
Cung cấp theo yêu cầu với nhiều biên dạng ren khác nhau.
Chúng tôi được khách hàng bình chọn là hàng đạt tiêu chuẩn chất lượng cao.
Bán lô máy cán ren, quả lô lăn ren
thru pakan rolling benang mati
Produk kami
Kami mengeluarkan pelbagai besar Circular Thread Rolling Dies untuk disesuaikan dengan pelbagai Heads Lampiran dan Mesin. Seperti Fette, Alco, Landis, Ort, Yieh Chen dan banyak lagi.
alat kami dibekalkan kepada industri automotif, aeroangkasa, petro-kimia dan banyak kawasan lain dalam sektor pengikat khusus.
Kami pakar dalam pembuatan dan membekalkan pelbagai jenis benang gulungan mengikut keperluan dan spesifikasi pelanggan. Kami pelbagai produk memenuhi kehendak mana-mana dan semua model benang menggulung Mesin. Semua produk kami dikilangkan oleh kami adalah seperti standard kualiti antarabangsa.
Kami ahli dalam pembuatan dan memasak berbagai jenis benang gulungan sesuai kebutuhan dan spesifikasi pelanggan. Kami berbagai produk memenuhi kehendak mana-mana dan semua model benang menggulung Mesin. Semua produk kami diproduksi oleh kami adalah seperti standar kualitas internasional.
يموت الموضوع المتداوليموت الموضوع المتداول
benang bergulir meninggal
laminado de roscas muere
laminado de roscas muere
laminado de roscas muere
